Brazed Heat Exchangers

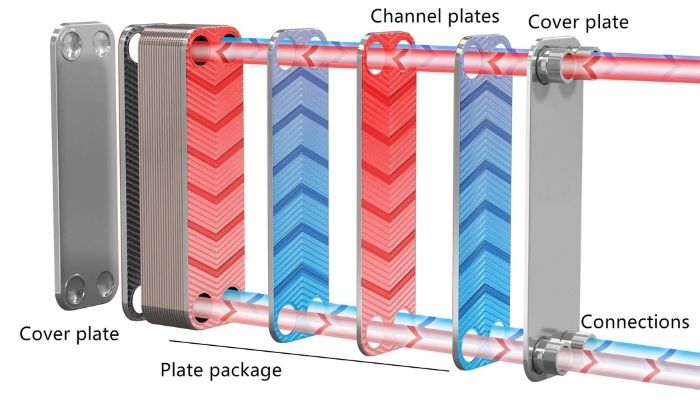

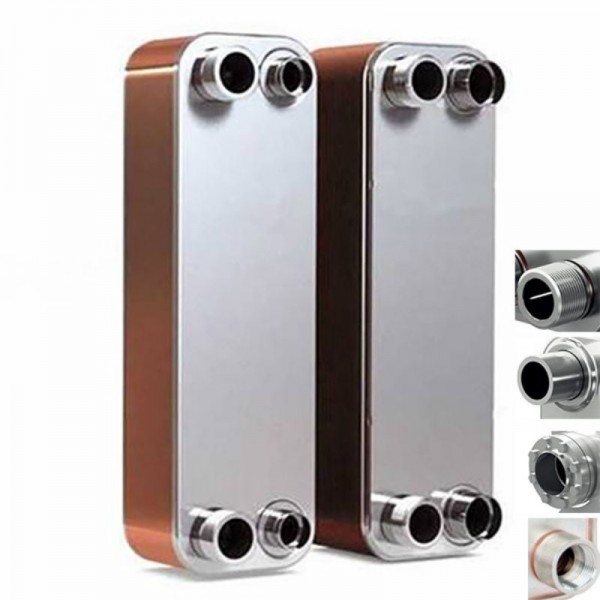

In ERK brazed heat exchangers, the arrangement of the plates and the placement of the nozzles are made in accordance with the demands of our valued customers. This compressed plate pack is soldered with copper under vacuum at high temperature to ensure impermeability. It is more compact than conventional type gasketed plate heat exchangers and can be used at higher temperatures and pressures.

ERK Brazed Heat Exchangers are suitable for use between -50 ° C and + 220 ° C and 30 bar design pressure and are suitable for use in various sectors.

Areas of Usage

- Heating and utility water systems (Substation etc.)
- Underfloor heating systems
- Condensers and Evaporators
- Energy Recovery (Economizer) Systems
- Oil Coolers and Other Industrial Applications

While copper brazing material is generally used for HVAC applications, nickel brazing material is preferred for highly corrosive fluids or applications in the food industry.

Thanks to the high turbulent flow between the sliced plates formed in the brazed heat exchanger, the pollution is kept at a minimum level and thus they do not require frequent maintenance.

Information about the brazed heat exchanger models available at ERK is as follows.

Model No	Height	Width	Distance Between Holes	Thickness	Weight
HAF-17	206 mm	76 mm	42 / 172 mm	9 + 2,3N	0,7 + 0,06N
HAF-17A	206 mm	80 mm	40 / 154 mm	9 + 2,3N	0,7 + 0,06N
HAF-23	315 mm	86 mm	40 / 269 mm	9 + 2,3N	1,0 + 0,08N
HAF-23A	315 mm	78 mm	40 / 282 mm	9 + 2,3N	1,0 + 0,08N
HAF-34	310 mm	111 mm	50 / 250 mm	10 + 2,36N	1,3 + 0,12N
HAF-55	525 mm	111 mm	50 / 466 mm	10 + 2,35N	2,6 + 0,21N
HAF-88	616 mm	191 mm	92 / 519 mm	11 + 2,72N	7,8 + 0,44N

ERK bünyesinde bulunan lehimli ısı değiştirici modellerine ait bilgiler aşağıdaki gibidir.

ERK with its expert staff, in accordance with its permanent mission, undertakes to offer the most accurate product or service selection by considering the customer benefit as an ethical criterion in every customer request and to produce or serve in line with the most up-to-date standards and technologies.
